Odor Control, Fume & Gas Emission Scrubbers

Posted by Anthony DeLoach, President on Jun 7, 2017 10:59:55 AM

How to select the best type of odor control, fume, or air emission scrubber.

Industrial and municipal operations are often faced with the challenges of capturing and treating air emissions from their process operations.  Off-gases, fumes, and odor emissions can be generated from the downstream process or material handling such as found in the municipal wastewater industry.  However industrial operations often generate fumes and off-gas air emissions from either the production of chemicals or from the use and application of chemicals like acids and a wide range of other chemicals. All of these types of air emissions share a common need to be safely captured, contained, and treated to make the air steam safe before its release.  Some types of air streams create an odor that becomes a nuisance as is typical with municipal waste that often releases Hydrogen Sulfide (H2S) and or Mercaptans (R-SH) gas during the decomposition process.

There are many variables that should be considered

4-round

when beginning the process of choosing the best type of air emission treatment process.  Within the industry, there are wet chemical scrubbers, dry absorbent scrubbers, and biological scrubbers, and destructive type scrubbers such as catalytic and thermal oxidizers and flare technology that utilize heat to destroy and consume and oxidize certain types of off-gases.

Each type of air emission process has its own parameters where it will perform optimally and each type of scrubber has different levels of operating challenges and operating costs associated.  So how does one select the best process for each application?

At DeLoach Industries we like to help customers with this evaluation process by completing a checklist guide which when done helps guide the customer to the most economical and safe solution. By going through this process you can help eliminate costly mistakes that may otherwise be overlooked.  All too often solutions are selected by looking at the contaminate only or by familiarity to the process.

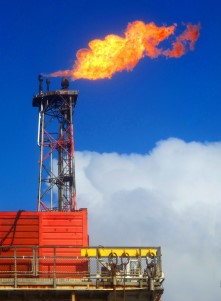

Gas Flare

Items that we consider during the selection process includes;

  • The type of contaminants and level of exposure risk
  • The source of the emission
  • The estimated flow rate
  • The concentrations and fluctuations in gas stream loading
  • The temperature of the gas or gases to treat
  • By-product residual comparison with destruction
  • Particulate loading levels
  • The type of facility and level of operators available
  • Hours of operation
  • The need for redundancy in the design
  • Potential energy values of the gas
  • Location of the treatment system in relation to the source

All of these variables and more need to be reviewed and considered when undertaking the design, engineering, and selection of the best type of odor control or air emission scrubber to avoid costly mistakes in both performance issues and most importantly operating cost.  As an example, certain chemical scrubbers require buffered or soften makeup water to avoid calcium carbonate scaling, and flares or oxidizers can destroy one contaminant while concentrating another like with hydrogen sulfide gas (H2S).

There are times that the ability to neutralize a gas or remove the odor is not the most important factor behind the technology selection. There are several different methods for treating air emissions and odor in industrial and municipal wastewater applications and one needs to examine each type of process and their individual requirements to understand and evaluate operating cost and performance reliability.

The most prevalent types of odor control and fume gas emission scrubbers on the market today are either “chemical” or “biological” and both types have been widely used for more than three decades.

When choosing what type of odor control or fume scrubber is best for your application you first need to understand the parameters of your air waste stream

that you need to treat. It is always recommended to have the odor gases analyzed to understand the total loading rate and what type of chemicals are creating the odorous gases. Many times you will find methane and hydrogen sulfide combined with other organics so understanding the chemical matrix of the gas is the first step in the selection process.

Aerator 2-1-Blue-w-logoBiological Scrubber

The next step is to make sure you gather more than just one sample, over a larger time period. This is crucial in the selection of technology for odor control. If after you collect your data you see that you have concentrations that have wide variations over a day or even an hour with more than a 5% change then a chemical scrubber may be your best choice. Biological scrubbers perform best when the concentrations remain steady and do not fluctuate. When concentrations change rapidly the biological growth cannot adjust fast enough, therefore the scrubber will experience “breakthrough” of untreated gases unless it is a two-stage scrubber with a carbon polishing unit.

Chemical Scrubber

If the concentration levels fluctuate, are extremely high, or have a wide variety of compounds in the gas mixture then chemical scrubbers (single or dual pass) are often the best selection. The other two key components to the selection process are the anticipated annual operating cost of the scrubber, and what type of service will the scrubber receive. If the scrubber is located where there is not an active operator and it may be left at times unattended, this can drive the decision back towards selecting a biological scrubber that has fewer components that need maintaining. It is always best to gather as much information on the specific location and obtain good analytical data before making a final selection.

 Double Stage Odor Control

Some air emissions and odors come from the venting of tanks while other odors are captured only after placing tank covers or hoods over the problem areas. If the odor stream is going to be pulled into the odor control scrubber you typically will have a fresh air vent allowing makeup air to enter into the tank. DeLoach Industries can help you evaluate your fume, gas, or odor problem and our professionals can help guide you through the selection process.  We interface directly with engineers when developing complex solutions and designs and provide a full submitter support and design support services.  For all your needs for air emissions, odor control or for your needs in Industrial Water Treatment DeLoach Industries can develop the most cost-effective long-lasting solution.  We work with our clients or their engineers to achieve the results needed and all system solutions are backed with our full support and warranty.  Celebrating now 60 years in business!  For more information or to learn more contact the professionals at DeLoach Industries Inc. at (941) 371-4995.
